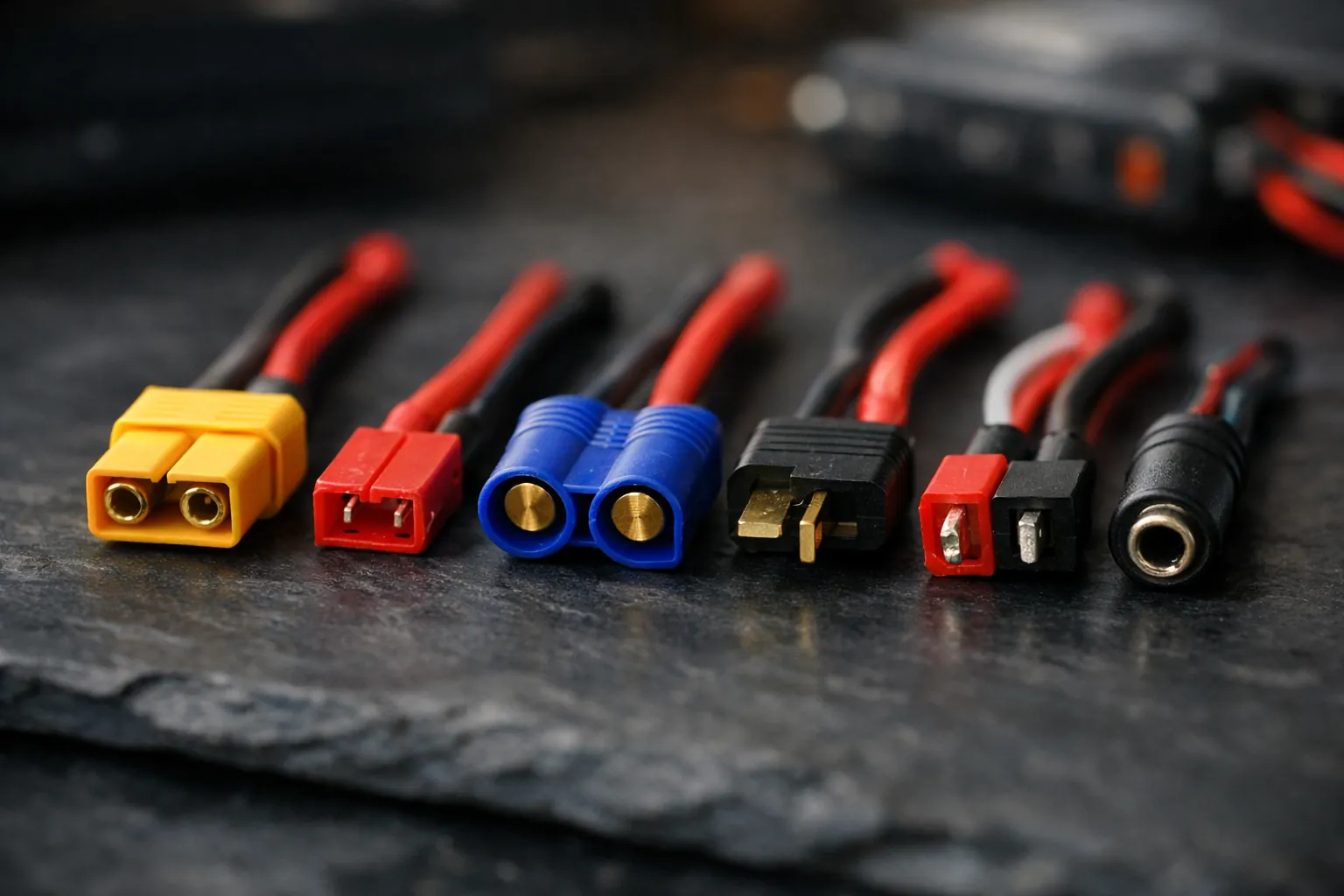

RC connectors mostly follow the brand. Traxxas trucks use the Traxxas connector (iD on current packs). Arrma and Axial use Spektrum IC connectors, which work with EC3 and EC5. Aftermarket batteries arrive with XT60, XT90, Deans-style T-plugs or EC5. Match the battery to your ESC's plug, or standardize on one connector across everything you own. The chart below identifies each one.
How we put this together
We took the connectors on current ready-to-run trucks from their manufacturer listings and cross-checked compatibility claims against Spektrum's Smart accessories page and Traxxas's Battery Basics. Best-selling connectors and adapters come from Amazon on October 3, 2026. How we research.
RC battery connector chart (printable)
One page, every plug. Print it, tape it above the charger, and check it the next time you buy a pack or a charge lead. The current ratings are the ones the connector makers themselves publish; where a maker publishes none, the sheet says "not published" instead of copying a number from a battery seller's blog.
RC battery connector chart
Read the rating right: the number in a plug's name is not its amp rating. Amass rates the XT60 at 35 A. Ratings depend on wire gauge, and every rating below is the maker's own figure under its stated condition. "Not published" means the maker gives none.
A. Connectors, small to large
| Shape | Connector | Looks like | Maker's rating | Common on |
|---|---|---|---|---|
| JST PH 2.0 | Tiny 2-pin, 2.0 mm pitch | 2 A (JST PH datasheet, AWG 24)* | Micro crawler packs | |
| JST XH (balance) | White multi-pin, 2.5 mm pitch; pins = cells + 1 | 3 A (JST XH datasheet, AWG 22) | LiPo balance leads | |
| XT30 | Small yellow, one bevelled corner | 20 A (Amass, XT30U, 16 AWG) | Small packs, chargers | |
| XT60 / XT60H | Yellow, bevelled corner; H has a sleeve | 35 A (Amass, 12 AWG); 30 A black nickel XT60H | Aftermarket 2S–4S packs | |
| XT90 / XT90H | Large yellow XT shape | 45 A (Amass, XT90H) | Large 4S–6S packs | |
| EC2 / IC2 | Small blue Horizon plug | EC2: 20 A (16 AWG), 15 A (20 AWG), E-flite. IC2: not published | Small Horizon models | |
| EC3 / IC3 | Blue, two round bullets | EC3: 60 A continuous (E-flite). IC3: not published | Axial SCX10 III, many 1/10 Horizon trucks | |
| EC5 / IC5 | Large blue, 5 mm bullets | EC5: over 120 A continuous on 10 AWG (E-flite). IC5: not published | Big Horizon bashers | |
| Deans-style T-plug | Flat T-shaped blades, usually red | Not published (WSD lists 0.10 mΩ only) | Older and aftermarket packs | |
| Traxxas High-Current (iD) | Traxxas-only shape | Not published | Every current full-size Traxxas | |
| Tamiya | Rectangular, latch on top | Not published | NiMH packs, toy-grade cars |
*JST's figure is for genuine JST PH contacts on 24 AWG wire. Spektrum sells its micro plug as "PH 2.0 (High-Current Ultra Micro)" and publishes no rating of its own.
B. Which plug does my truck use?
| Model | Battery plug (maker's wording) |
|---|---|
| Traxxas Slash (all current) | Traxxas High-Current; iD on BL-2s and VX3 |
| Traxxas Stampede (all current) | Traxxas High-Current |
| Traxxas Maxx | Traxxas High-Current, one 3S or 4S pack |
| Traxxas X-Maxx | Traxxas High-Current, two identical packs |
| Traxxas TRX-4M | Traxxas iD (TRX-4M module only) |
| Axial SCX24 | PH 2.0, 2-pin |
| Axial SCX30 | JST PH2.0 2P |
| Axial SCX10 III | IC3 (EC3 or IC3 pack) |
| Redcat Ascent-18 | JST (type not stated) |
| Arrma Granite / Senton 223S, 3S BLX V3 | IC5 (V3 page: "IC5, EC5") |
| Arrma Granite MEGA, Boost | IC3 (EC3 compatible) |
| Arrma GROM family | IC2 |
| Arrma Kraton 6S (V5, V6) | IC5; one 6S or two packs |
C. Compatibility
- IC3 accepts EC3; IC5 accepts EC5. Smart features need Smart on both ends (Horizon).
- IC2 is NOT compatible with EC2 (Horizon).
- Traxxas iD chargers read iD packs automatically; non-iD packs charge in manual mode (Traxxas).
- Adapters: a stopgap for the charge lead, not the drive connection. Traxxas's VX3 manuals say no adapters when charging iD packs.
D. Before you solder
- One wire at a time. Never let bare battery leads touch.
- Positive to positive. Confirm polarity with a voltmeter if unsure (Horizon).
- Heat shrink every joint.
- Go up a size when power goes up, never down. Horizon: preinstalled plugs "do have power limitations".
- A plug that comes off hot, discolored or loose is done.
Ratings: Amass (china-amass.com), E-flite/Horizon Hobby product pages and JST datasheets. Plugs: maker manuals and product pages. Checked 2026-10-03. Full guide and sources: bashbench.com/rc-battery-connector-types/ · BashBench
How to read the sheet
Table A runs from the smallest plug to the largest. Amass makes XT connectors and Horizon Hobby's E-flite brand makes EC connectors, so those numbers come from them, and JST publishes datasheets for its PH and XH families. Traxxas, Spektrum (for IC plugs) and WSD (for Deans) publish no amp figure that we could find. Each row of table B comes from that model's current manual or product page. If your model isn't listed, the battery lead coming out of the ESC tells you, and so does the box-contents table in the manual.

What about amp ratings?
This is where most online charts go wrong. People read the "60" in XT60 as 60 amps. Amass, the company that makes XT connectors, lists the XT60 and the sheathed XT60H at 35 A max with 12 AWG wire, the black nickel XT60H at 30 A, the XT30U at 20 A and the XT90H at 45 A. Those are rated figures with a stated temperature rise, and Amass gives no burst number on those pages. Clones may differ, and wire gauge and solder quality set real-world limits too.

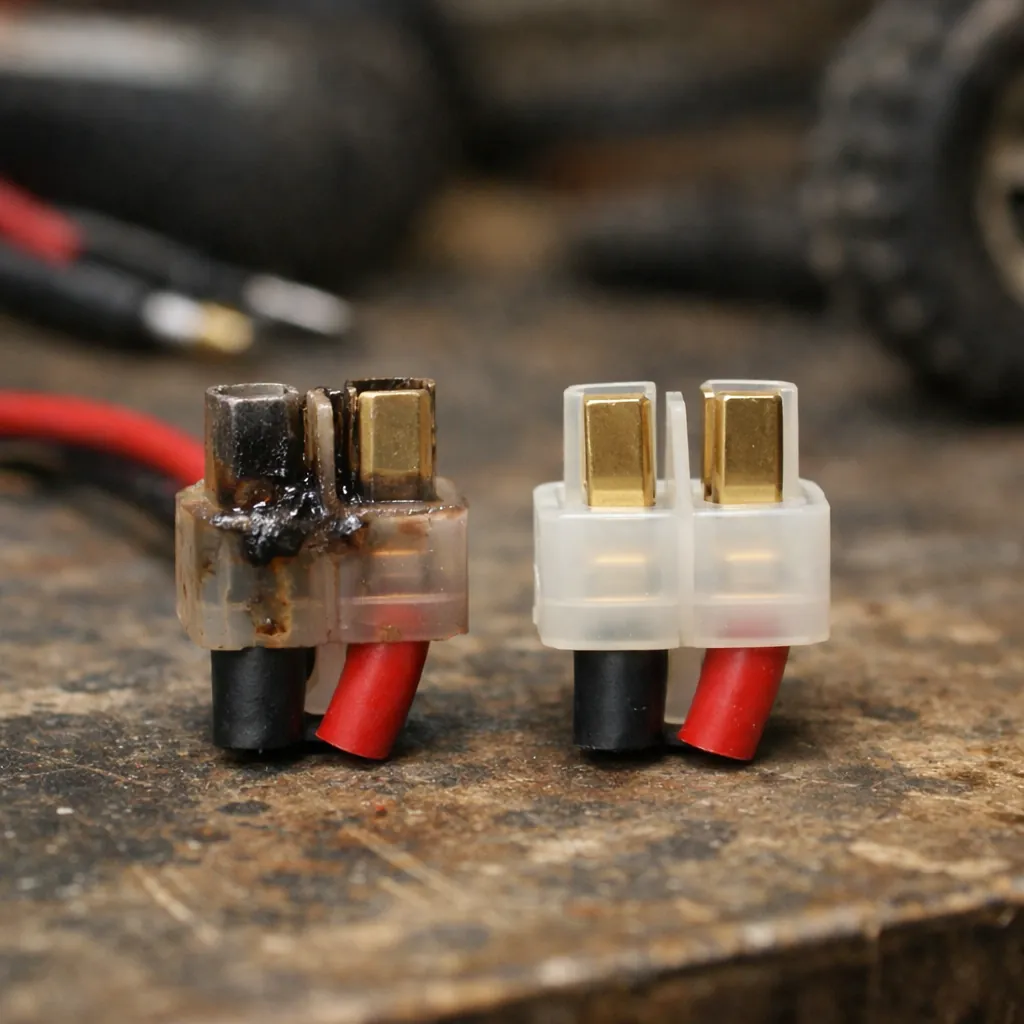

Horizon's battery safety sheet adds the caveat that matters more than any rating: its preinstalled connectors "do have power limitations", and if you run a battery in a setup that exceeds them, fitting a better-rated connector is on you (Horizon Lithium Battery Safety 54892). So use the connector your truck's maker chose for that power level, and if you move to a much stronger system, go up a size, never down. A plug that comes off the truck hot, discolored or loose is undersized or worn out.
Sources for every rating
| Connector | Published figure | Source |
|---|---|---|
| XT30U | 20 A max (16 AWG) | Amass XT30U |
| XT60 | 35 A max (12 AWG) | Amass XT60 |
| XT60H | 35 A max (12 AWG); black nickel version 30 A | Amass XT60H, black nickel XT60H |
| XT90H | 45 A max | Amass XT90H |
| EC2 | "20A continuous current with 16-awg wire"; 15 A with 20 AWG | E-flite EC2 |
| EC3 | "Capable of 60 continuous amps" | E-flite EC3 |
| EC5 | "more than 120A continuous current with 10-awg wire" | E-flite EC5 |
| IC3 / IC5 | No rating; "compatible with EC3 and EC5" | Spektrum Smart battery page |
| JST PH | 2 A AC/DC (AWG 24) | JST PH datasheet |
| JST XH | 3 A AC/DC (AWG 22) | JST XH datasheet |
| Deans Ultra Plug | Resistance 0.10 mΩ; no amp figure | WSD Deans |
| Traxxas High-Current | No amp figure on Traxxas connector pages | Traxxas Battery Basics (iD explained) |
Horizon's battery safety document adds the caveat that matters more than any rating: its preinstalled connectors "do have power limitations", and if you run a battery in a setup that exceeds them, replacing the connector with a better-rated one is on you (Horizon Lithium Battery Safety 54892).

Which connector does your truck use?
Traxxas trucks use the Traxxas connector, and current packs carry the iD version. If your truck runs two packs, the Traxxas 3064X high-current iD parallel Y-lead joins them.
Arrma, Axial and Losi are all Horizon Hobby brands, and they use Spektrum IC connectors. The Arrma Mojave GROM listing asks for an IC2-compatible battery; larger trucks use IC3 or IC5. Spektrum says EC3 works with IC3 and EC5 with IC5, but the Smart features only work IC-to-IC.
Axial's SCX24 and SCX30 take small PH 2.0 plugs, and the SCX10 III takes EC3 or IC3 packs. The TRX-4M is the odd one out: its pack plugs straight into the ECM-2.5 module, and Traxxas's manual says to use the module only with the included Traxxas iD pack. Model battery pages go deeper on fit, with tray dimensions from the manuals: Traxxas Slash battery, TRX-4M battery, SCX24 battery, X-Maxx battery and Arrma Kraton 6S battery.
Redcat and the smaller brands vary by model, so look at the ESC lead or the manual before you buy packs. Toy-grade and older NiMH cars often have a Tamiya plug or a small proprietary one.
Adapters vs re-soldering

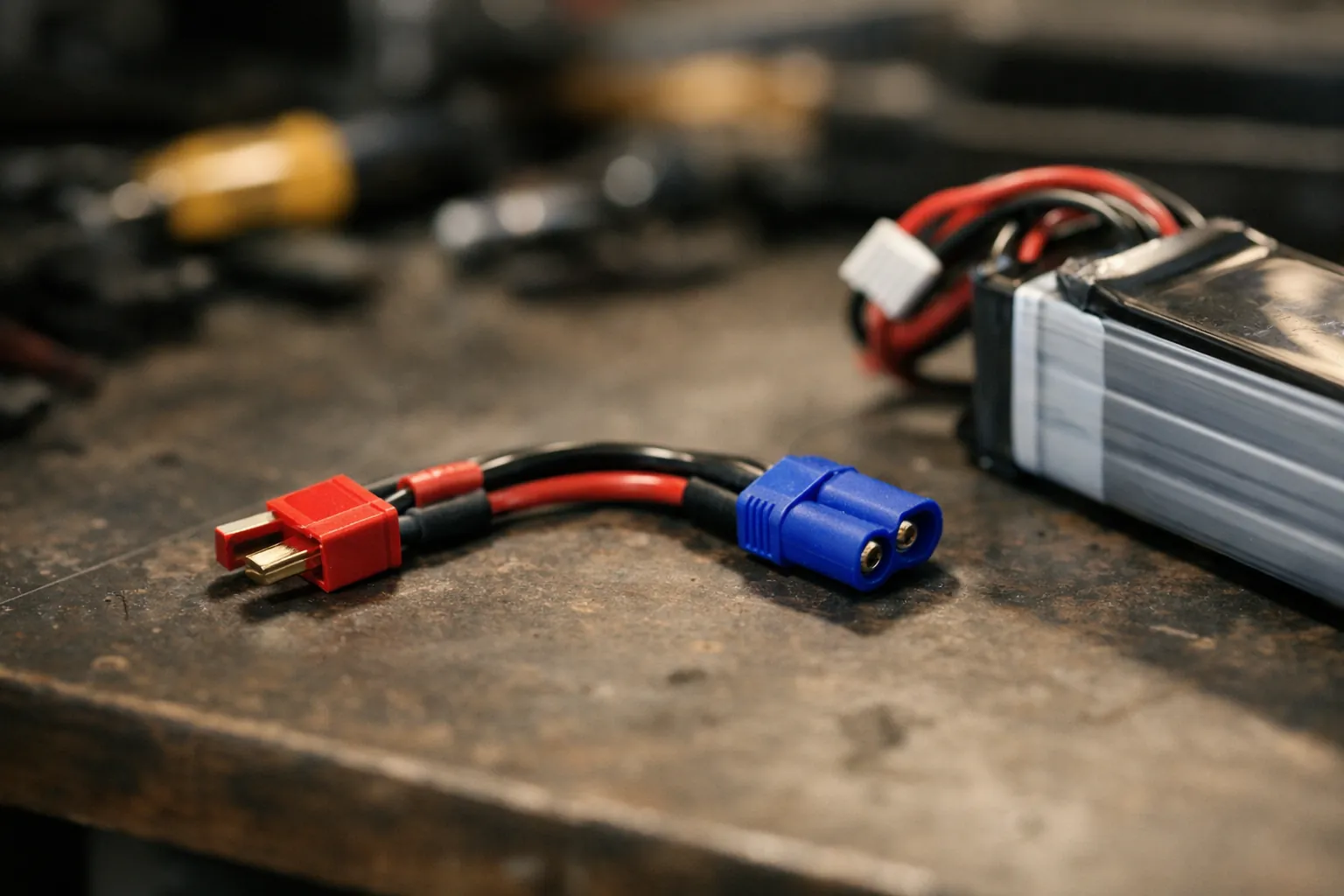

Adapters are the quick fix, and for charging leads they're fine. The battery-to-ESC connection carries full current, though, and many owners would rather solder on one matching connector there, since each extra junction adds resistance and another place to work loose. Traxxas owners have an extra reason to think twice: its VX3 manuals say to charge iD batteries only on a Traxxas iD charger and "DO NOT use an adapter of any kind". These adapters are selling well on Amazon this month:
- Traxxas-plug to XT60 adapters (2 pairs), for running XT60 aftermarket packs in a Traxxas truck.
- Traxxas-plug to EC5 adapters (2 pairs)
- XT60 to T-plug conversion adapters (400+ bought last month)
- XT60 to EC5 adapters with 14AWG lead

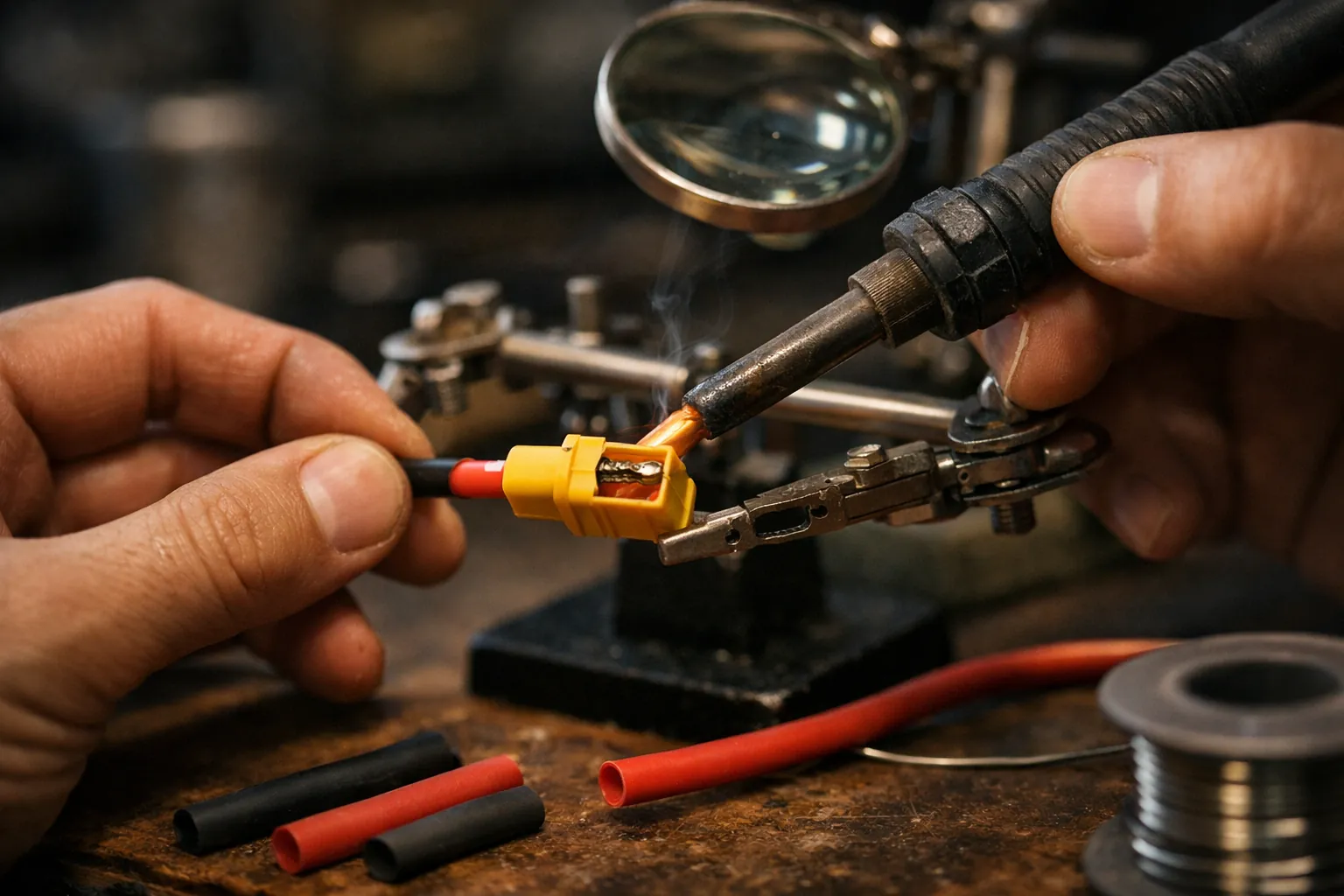

Prefer to solder? XT60H connector pairs (12 pairs) and Deans-style T-plug pairs are among the best-selling connector packs. Do one connector at a time and cover every joint with heat shrink. Before plugging in, check polarity (red to positive); Spektrum's sheet recommends confirming it with a voltmeter if you're unsure.

The other plug: balance leads
LiPo packs have a second, smaller connector called the balance lead. It's a multi-wire plug, one wire per cell plus one, that lets a balance charger watch and even out each cell. A 2S pack's balance plug has three pins; a 3S pack's has four. Most aftermarket packs use JST-XH style balance plugs, and most hobby chargers have matching ports, though some brand systems balance through their own connector. Spektrum's safety sheet says to make sure the balance lead is in the correct charger port, and on multi-port chargers to connect the power lead and balance lead to the same channel.
Don't forget the charger side
The charger needs a lead that fits your packs too. Many hobby chargers have an XT60 or banana-plug output and come with a bag of leads; Traxxas iD chargers come with the Traxxas connector. A multi-plug lead like this 10-in-1 charge cable to XT60H covers most packs, and our guide to the best LiPo charger for beginners goes further. The connector doesn't change the LiPo rules: charge in a fire-resistant container or LiPo bag on a non-flammable surface, and never leave it unattended.
What we'd do
One brand of truck? Keep the maker's connector: Traxxas for Traxxas, Spektrum IC for Arrma and Axial. Several brands? Pick a single plug (XT60 suits 1/10 trucks; 6S needs something larger) and convert everything to it on one rainy afternoon. Keep adapters on the charging bench, solder the plugs you drive on, and bin any connector that shows heat marks.
