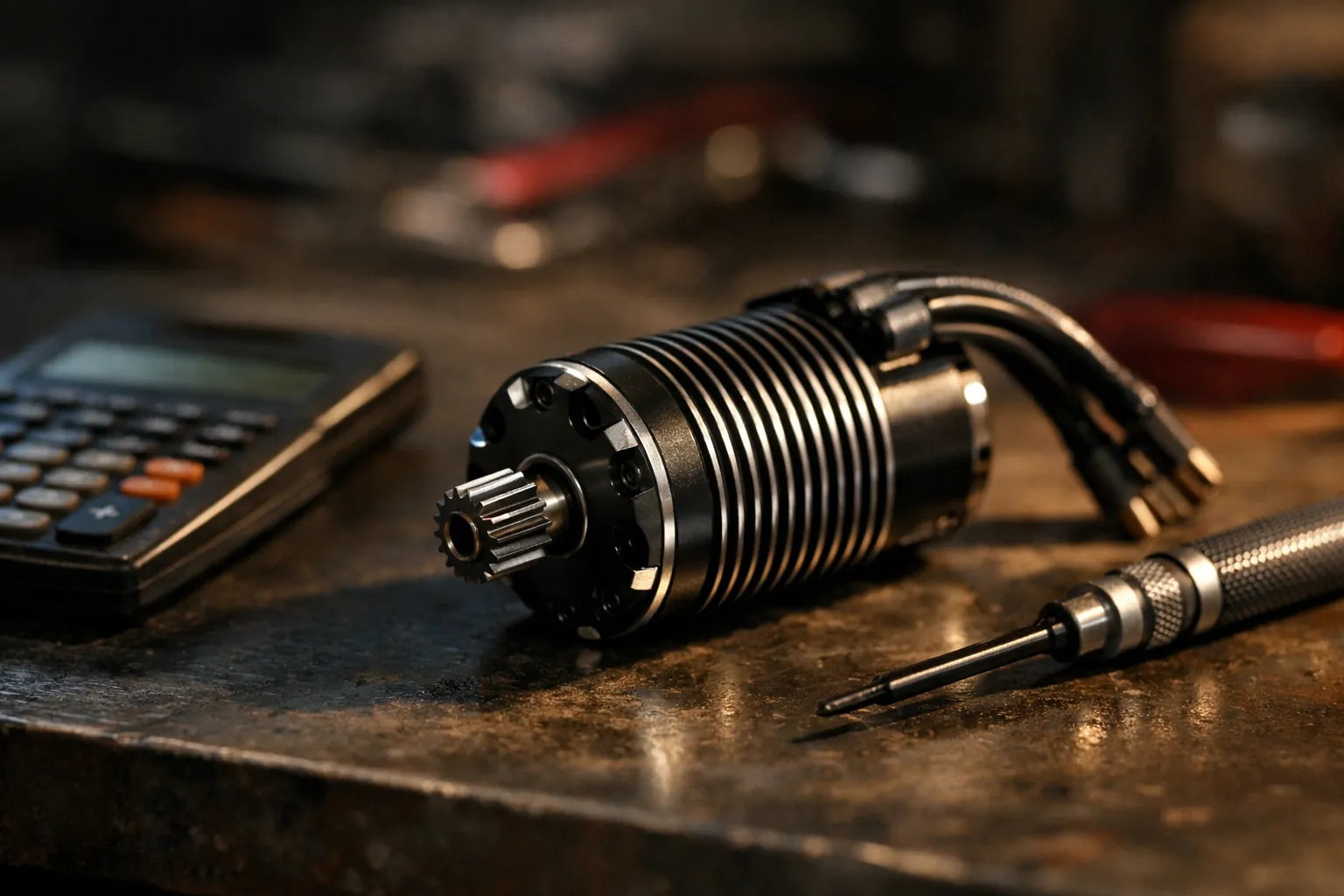

A brushless RC motor with a pinion gear on a workbench beside a calculator

RC motor KV explained: what the number really means

KV is the most misunderstood number on a brushless motor. It isn't power. It's speed per volt, and it only makes sense alongside your battery and gearing.

How we pick · Updated · We earn a commission when you buy through our Amazon links.

KV is the number of rpm a brushless motor spins per volt, with no load. Multiply it by your battery voltage and you have its theoretical top rpm. It isn't power, torque or a quality score. On the same battery a higher KV spins faster, and a lower KV is the better match for higher voltage and heavier trucks. Pick it with your battery and gearing in mind, never on its own.

How we put this together

This is an explainer. The motor examples come from real manufacturer listings on Amazon, checked October 3, 2026, so you can see actual KV numbers in context. The rpm figures are plain arithmetic (KV × voltage): theoretical no-load values, not measurements. How we research.

The KV formula

One line: no-load rpm ≈ KV × voltage. Nominal pack voltage (3.7V per LiPo cell) is fine for an everyday estimate. A freshly charged pack starts a little higher.

KV times voltage equals no-load rpm, with three examples Bars comparing theoretical no-load rpm: a 3800KV motor on 2S is about 28,000 rpm, on 3S about 42,000 rpm, and a 2000KV motor on 6S about 44,000 rpm. KV × volts = no-load rpm 3800KV × 7.4V (2S) 3800KV × 11.1V (3S) 2000KV × 22.2V (6S) ≈ 28,100 ≈ 42,200 ≈ 44,400
A low-KV motor on high voltage can out-spin a high-KV motor on low voltage. Bar lengths are to scale; values are theoretical no-load rpm.

Look at the last two bars. Traxxas lists 2000KV for the Sledge's 6S system, and that motor spins about as fast as a 3800KV motor on 3S because it gets twice the voltage. Big 6S and 8S trucks run low KV for this reason. The voltage supplies the rpm; the low KV keeps current and heat in check. The gearing side of a big truck is worked through in X-Maxx gearing and top speed.

Quick rpm table

Theoretical no-load rpm for common KV ratings at nominal LiPo voltages (KV × volts). Under load you'll see less. Not every motor or ESC is rated for every voltage here, so check both before adding cells. Your ESC sets a Kv ceiling too: the ESC guide shows how a 120 A ESC lists different Kv limits for 3S and 4S.

Motor2S (7.4V)3S (11.1V)4S (14.8V)6S (22.2V)
2,000KV14,80022,20029,60044,400
3,000KV22,20033,30044,40066,600
3,800KV28,12042,18056,24084,360
4,300KV31,82047,73063,64095,460

Going from 2S to 3S raises theoretical rpm by half. Read across any row and you can see why one extra cell feels like a different truck, and why manufacturers put low-KV motors in high-voltage trucks.

Why higher KV isn't "more power"

Take two motors with the same can size. The higher-KV winding spins faster per volt but makes less torque per amp, so it pulls more current to do the same work. That current turns into heat in the motor and ESC, and in the battery and connectors too. Put a high-KV motor in a heavy truck and it can overheat before it ever sees top speed.

Going to a…On the same battery you getWatch out for
Higher KVMore top-end rpm, faster speed potentialMore current draw and heat; may need smaller pinion
Lower KVMore torque per amp, cooler runningLess top speed unless you add voltage or gear up
More voltage (more cells)More rpm from the same motorESC, motor and driveline must be rated for it

Real KV numbers from real products

KV swings widely with the job. These figures are straight from the manufacturer listings:

ProductKVUse
Hobbywing Quicrun Fusion SE 1200KV1200KV1/10 crawlers
Hobbywing Quicrun Fusion SE 1800KV1800KV1/10 crawlers
Traxxas Sledge (VXL-6s system)2000 Kv1/8 6S monster truck
Redcat Ascent-18 Scout II3450KV outrunner1/18 crawler
Redcat Ascent-18 APEX3500KV (Hobbywing Mini 24)1/18 crawler on 3S
Castle Copperhead 1410 combo3800Kv1/10 sensored
S3650 brushless motor + 60A ESC combo4300KV1/10 budget upgrade

Crawler motors sit low because crawling wants slow, controlled torque. Micro-crawler motors look like an exception: they can carry high KV numbers because they're tiny and geared way down.

Motor size: the other half of the label

Brushless motor names often include a four-digit size code, usually the can's diameter and length in millimeters. A 3650 is roughly 36 mm × 50 mm; a 3652 is slightly longer. A bigger can holds more copper and magnet, so it sheds heat better and handles more power. Size and KV are independent, and the same 3650 can is sold in many KV windings.

Vehicle classSize codes seen in current listingsExample
1/24 micro crawler1721INJORA MBL32 ESC + 1721 motor for SCX24
1/10 basher and SCT3650, 3652, 3660Hobbywing 10BL60 G2 + 3652SL G2
1/10 crawler3530 outrunner, 3660Hobbywing 10BL80 + Outer 3530 2200KV
1/8 and largerCheck your truck's manualLarger cans for 4S–8S

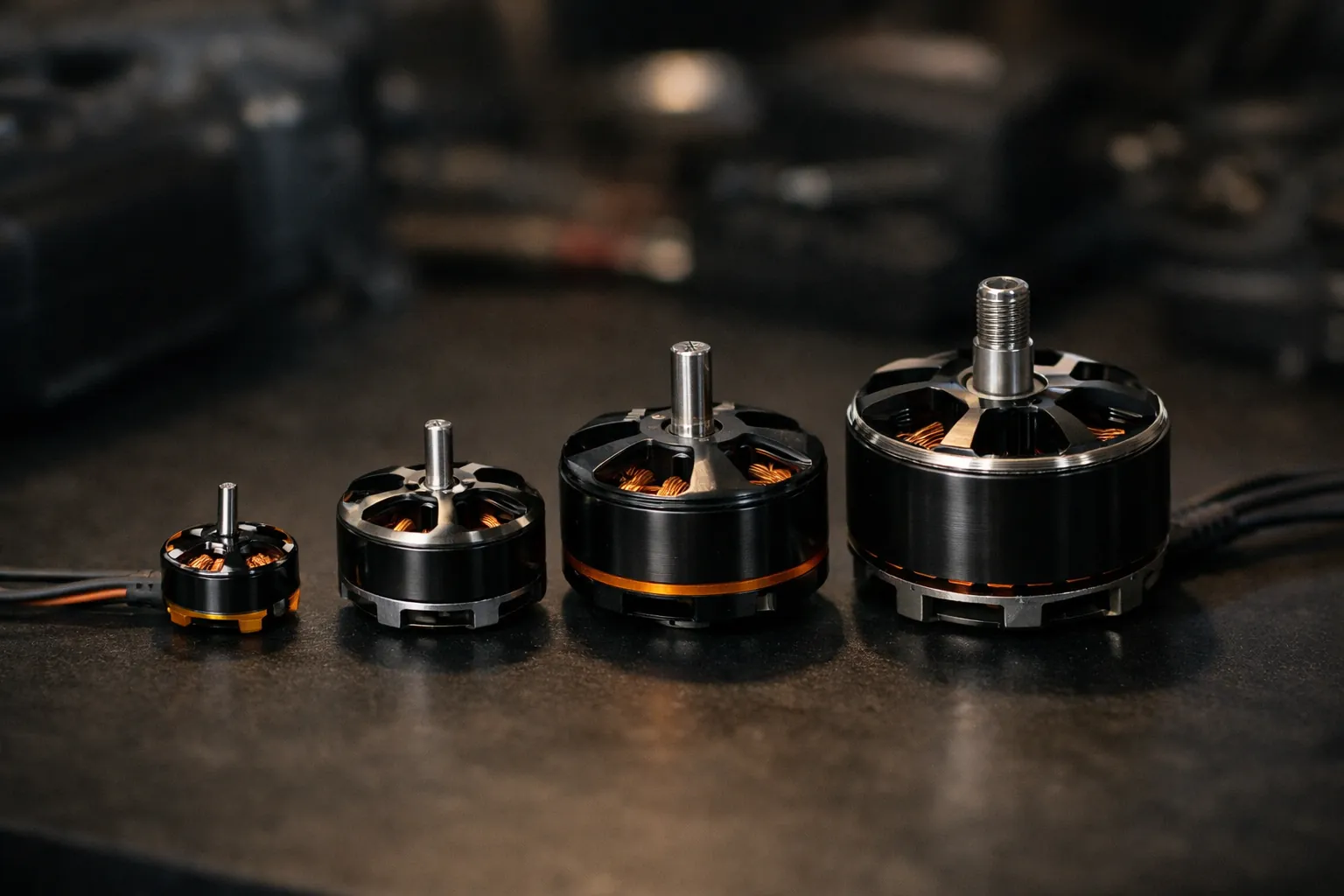

Brushless RC motors lined up from small to large
Can size scales with the vehicle. KV is a separate choice within each size.

KV to turns: is there a conversion chart?

Brushless motors are labeled two ways. Sensorless basher motors use KV (3200 Kv, 3800KV). Sensored racing motors are often sold by turns (10.5T, 13.5T, 17.5T), the number of times the wire winds around each stator tooth. The two describe the same thing from opposite ends: fewer turns means a higher KV, more turns means a lower KV.

LabelWhere you see itLower number meansHigher number means
KVBasher and crawler motors, ESC combosSlower per volt, more torque per ampFaster per volt, more current
Turns (T)Sensored 1/10 racing motorsFaster per volt (fewer wraps, higher KV)Slower per volt (more wraps, lower KV)

We don't print a single turns-to-KV chart, because we found no maker that publishes one that holds across brands. The KV for a given turn count changes with the can size, the magnets and the wire gauge, so a 13.5T motor from one brand can differ from another's. Read the KV on the motor's own spec sheet, then use the formula and rpm table above. If a spec sheet lists only turns, check the ESC maker's guidance for the turn limit it supports.

What are the benefits of upgrading to a brushless motor?

Speed per volt is the headline, and Traxxas's own numbers show the size of it. Its brushed Slash 2WD XL-5 (Titan 12T motor) is listed at 30+ mph with a 7-cell battery. The brushless Slash 2WD with a Velineon V3200 motor (3200 Kv) is listed at 35+ mph on 2S LiPo and 50+ mph on 3S. Those are different trucks and maker claims, so read them as a rough guide to the gap. Every Slash version's claim and the pinion behind it are in Traxxas Slash top speed.

A brushed motor also has brushes and a commutator that wear and need cleaning, as Traxxas's brushed-model manual notes. A brushless motor has neither, which is why most upgrade kits are brushless. You pay for it in a new ESC, because a brushless motor needs a brushless-rated one, and in a LiPo battery and charger if you move to 2S or 3S. Our brushless vs brushed guide has the decision, and the ESC explainer covers matching the speed control.

Gearing changes the answer

KV sets motor rpm. Gearing decides how much of it reaches the wheels. A bigger pinion (or smaller spur) buys top speed and puts more load on the motor; a smaller pinion gives quicker acceleration and cooler running. Change KV or battery voltage and you'll often need a different pinion as well, which is why many truck manuals print a gearing chart. Plug your numbers into the RC top speed calculator, and see the pinion and spur gear guide for how to swap them. Our fastest RC car guide shows how voltage and gearing combine in the cars with the biggest speed claims.

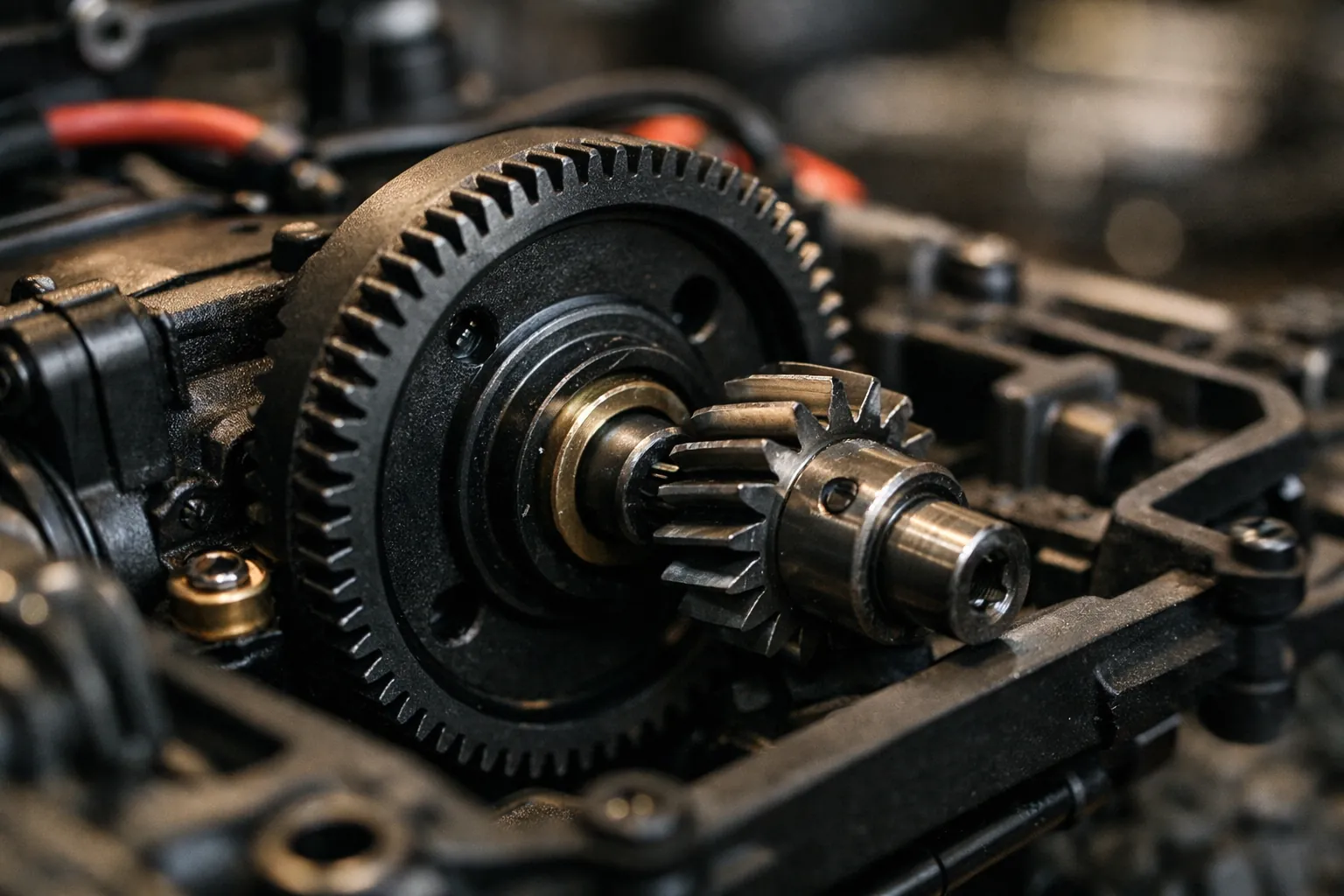

An RC pinion and spur gear meshing
Pinion and spur together turn motor rpm into wheel speed. Change one spec, recheck the other.

Get in the habit of touching the motor after a hard run. Too hot to hold comfortably? Gear down (smaller pinion) or drop the voltage. Most motor makers publish a maximum temperature in their manual.

Checking an RC motor temperature with an infrared thermometer
An inexpensive infrared thermometer is the easiest way to tell if your KV and gearing are right.

How to choose KV for an upgrade

  1. Decide on your battery first (2S, 3S, 4S…) and confirm the ESC is rated for it.
  2. Keep to the can size your motor mount and vehicle class use.
  3. Choose KV for the job: lower for heavy trucks or high voltage, lower still for crawling, and higher for light vehicles on low voltage.
  4. Start with conservative gearing, then check temperatures and adjust.

Coming from a brushed motor? Read brushless vs brushed first.

The one rule to remember

Never shop by KV alone. Decide the voltage, then the can size, then the KV, and fix the rest with the pinion. If you're stuck between two windings for a heavy truck, take the lower one and add a cell if the ESC allows it; that's how the Sledge gets its speed from 2000 Kv on 6S without cooking itself.

KV and size figures come from manufacturer listings, checked October 3, 2026. rpm values are calculated no-load estimates. How we research · Affiliate disclosure

Questions people ask

What does KV mean on an RC motor?
KV is the motor's speed constant: roughly how many rpm the motor spins per volt applied, with no load. A 3000KV motor on 10 volts would spin about 30,000 rpm unloaded. Under load, in a real truck, it spins slower.
Is higher KV faster?
Only at the same voltage. On the same battery, a higher-KV motor has more top-end rpm, but it draws more current and makes less torque per amp. Big trucks on high voltage use lower KV on purpose: the Traxxas Sledge runs a 2000 Kv motor on 6S.
Is higher KV more powerful?
No. KV says nothing about power by itself. Power comes from voltage and current, and from how big the motor is. A large low-KV motor on 6S can make far more power than a small high-KV motor on 2S.
What KV motor should I use for a 1/10 truck?
Use the motor your truck's maker or the ESC maker recommends for your battery voltage and vehicle weight. For a sense of the spread, Castle's 1/10 Copperhead combo is sold at 3800Kv, while Hobbywing's Fusion crawler motors come in 1200KV and 1800KV.
How do I calculate rpm from KV?
Multiply KV by battery voltage. With nominal voltages, a 3800KV motor on a 2S (7.4V) pack works out to about 28,000 rpm unloaded, and on 3S (11.1V) about 42,000 rpm. Those are theoretical no-load numbers; under load the real figure is lower.
What do motor size numbers like 3650 mean?
They usually describe the can's diameter and length in millimeters, so a 3650 is about 36 mm wide and 50 mm long. Bigger cans can handle more power and heat. KV and size are separate specs: you can buy a 3650 in many KV ratings.
